Home / Machines

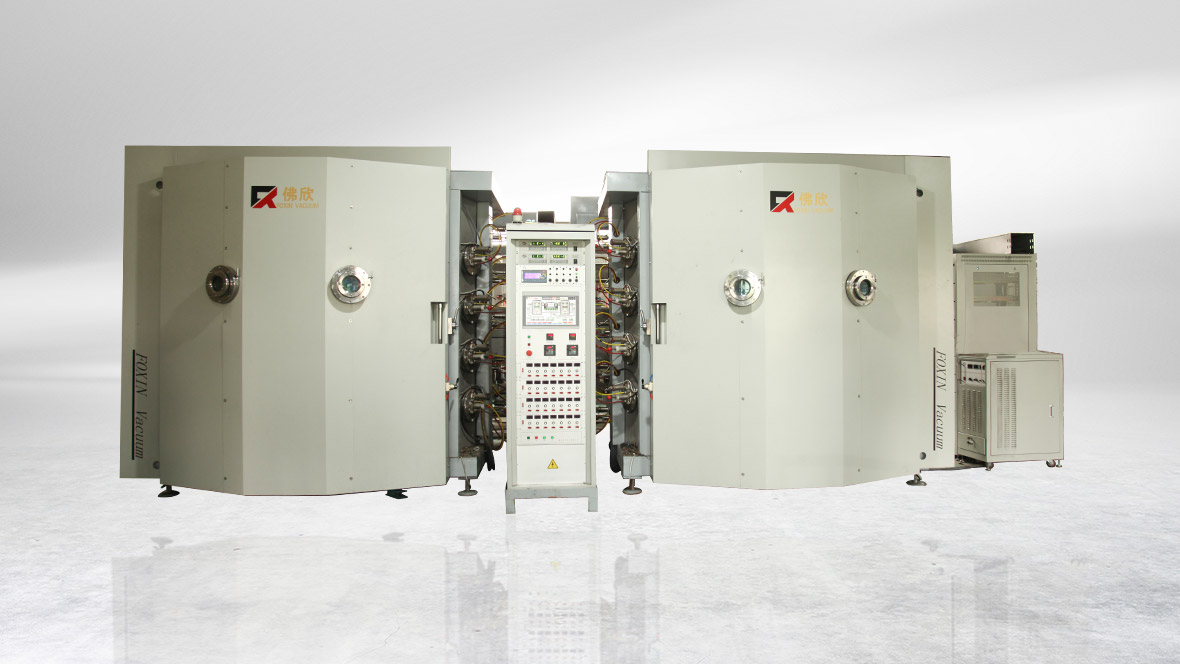

PVD multi-arc ion sputtering coating machine

FOXIN -PVD Multi-Arc Ion Sputtering Coating Machine

Multi-Arc Ion Sputtering Coating Machine. For depositing thin films on a variety of surfaces. The machine utilizes a multi-arc ion source. The plasma discharge is generate in a vacuum chamber. The ions are accelerate towards the target material. Atoms are ejecte from the target and deposited onto the substrate. This process allows for the deposition of a wide range of thin film coatings. Including metals, alloys, ceramics, and diamond-like carbon. The machine is capable of producing precise and durable thin film coatings. industries such as aerospace, automotive, medical and semiconductor manufacturing. Features of this machine may include:
  • Multi-arc ion source with multiple cathodes for simultaneous deposition of multiple materials
  • Advanced plasma control system for precise film thickness and composition
  • Automatic substrate loading and unloading system for increased efficiency
  • Various substrate sizes and shapes can be accommodate
  • User-friendly interface and control software for easy operation and maintenance.

FOXIN -PVD Multi-Arc Ion Sputtering Coating Machine FAQ

Q: How does the FOXIN-PVD Multi-Arc Ion Sputtering Coating Machine work?
A: The process begins with the loading of the substrate into the vacuum chamber, which is then pumped down to a low-pressure environment. Once the vacuum level is achieve, the ion source is activate, and the target material is bombarde with ions. The ejected atoms from the target then travel to the substrate, where they condense and form a thin film.
Q: What types of materials can be coate using the FOXIN-PVD machine?
A: The FOXIN-PVD Multi-Arc Ion Sputtering Coating Machine is capable of depositing a wide range of materials, including metals, alloys, ceramics, and diamond-like carbon. The specific materials that can be coate depend on the availability of the target materials and the specific requirements of the application.
In general, the machine can be use to coat materials such as stainless steel, titanium, aluminum, brass, copper, nickel, and various alloys. It can also be use to deposit coatings with specific properties, such as high hardness, wear resistance, corrosion resistance, and optical properties.
Q: What are the advantages of using the FOXIN-PVD machine?
A: Advantages of using the FOXIN-PVD Multi-Arc Ion Sputtering Coating Machine include:
  1. High-quality coatings: The multi-arc ion source allows for the deposition of high-quality coatings with excellent adhesion, uniformity, and density.
  2. Versatility: The machine is capable of depositing a wide range of materials, including metals, alloys, ceramics, and diamond-like carbon, making it suitable for a variety of coating applications.
  3. Efficiency: The automatic substrate loading and unloading system, along with the advanced plasma control system, allows for increased efficiency and throughput, making it ideal for high-volume production environments.
  4. Precise control: The advanced plasma control system allows for precise control over the film thickness, composition, and properties.
  5. User-friendly interface: The machine is designe with a user-friendly interface and control software, making it easy to operate and maintain.
Q: What industries use the FOXIN-PVD machine?
A:Industries that use the FOXIN-PVD Multi-Arc Ion Sputtering Coating Machine include:
  1. Automotive: The machine can be use to deposit coatings for wear resistance, corrosion resistance, and decorative purposes.
  2. Aerospace: The machine can be use to deposit coatings for improved surface hardness, wear resistance, and lubrication.
  3. Electronics: The machine can be use to deposit coatings for improved electrical conductivity, corrosion resistance, and optical properties.
  4. Medical: The machine can be use to deposit coatings for improved biocompatibility, wear resistance, and corrosion resistance.
  5. Industrial: The machine can be use to deposit coatings for wear resistance, corrosion resistance, and decorative purposes in a variety of industrial applications.

Learn More

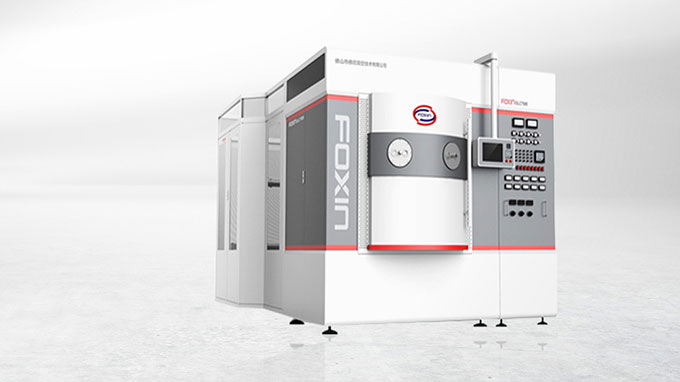

FOXIN-IP Magnetron Ion Sputtering Coating Machine

Magnetron Ion Sputtering Coating Machine is a physical vapor deposition (PVD) system. It use to deposit thin films of various materials on the surface of substrates. The tools needed for this process are as follows: Vacuum chambers for target materials 、substrates, as well as ion sources and magnetrons.

A magnetron generates a magnetic field that traps electrons. The ion source is use to ionize inert gas, such as argon, and accelerate the ions toward the target. When the ions hit the markers, they knock atoms off the surface. Atoms pass through a vacuum chamber and are deposite onto a substrate. Finally, a thin film coating is form.

Magnetron ion sputtering is a precise and controllable process. Can be use to deposit a wide variety of materials. Includes metals, alloys, oxides and nitrides. It is commonly used in the production of various products. Including semiconductor devices, optical coatings and decorative coatings.


Here are some key features of a Magnetron Ion Sputtering Coating Machine:


  • High Precision: Magnetron ion sputtering is a highly precise process. Can produce thin film coatings with very tight tolerances and uniform thickness.
  • Customizable Coating: The process can deposit on a wide variety of materials. Coatings can thus be tailore for specific applications.
  • High-Quality Films: Magnetron ion sputtering produces high-quality thin films that adhere to substrates. This film is dense and smooth.
  • Good Adhesion: Films produced using magnetron ion sputtering have good adhesion to substrates. making it suitable for a wide range of applications.
  • High Efficiency: The process is highly efficient, with a high material utilization rate. And it has low gas consumption and low energy consumption.



FOXIN-IP Magnetron Ion Supttering Coating Machine FAQ:


Q: What is the maximum size of substrate that can be coat in the Optical PVD Coating Machine?

A:The maximum substrate size that the machine can coat varies. Depends on the specific machine and its design. Typically, optical PVD coaters can accommodate a wide range of substrate sizes. From small samples or components to large sheets or even rolls of material.

Q: What types of materials can be deposite using the Optical PVD Coating Machine?

A: Optical PVD coaters can deposit a wide variety of materials. Includes metals, metal alloys, metal oxides, nitrides and carbides. And diamond-like carbon (DLC) specific application requirements.

Q: How thick can the coating be deposite using the Optical PVD Coating Machine?

A: The thickness of the coating that can be deposite depends on several factors. For example the type of deposited material. The deposition process used, and the specific application requirements.
Q: How long does it take to coat a substrate using the Machine?

A: The time it takes for equipment to coat a substrate depends on several factors. Including the type of coating material and the thickness of the coating. Also, the size and shape of the substrate and the specific process parameters are use.

In general, the coating process can take anywhere from a few minutes to several hours. Depending on the complexity of the coating and the size of the substrate. For example, a simple decorative coating on a small substrate may only take a few minutes. Complex functional coatings on large substrates can take hours.

It is worth noting that the coating process may also include additional steps. Examples include substrate cleaning and surface preparation. And post-processing, which also impacts overall processing time.

Q: What type of gases can be use in the vacuum chamber of the Machine?

A: Commonly used gases in vacuum chambers are argon, oxygen, nitrogen, and acetylene. Gas choices vary. Depends on application and coating material deposited.

Q: What is the maintenance schedule for the Machine?

A: The maintenance schedule depends on the specific machine and its usage. However, some general maintenance tasks that may be require include:

  1. Periodically clean the vacuum chamber to remove debris or residual coating material.
  2. Replacement of worn or damaged components such as targets, cathodes, and filters.
  3. Inspection and cleaning of the deposition sources to ensure proper function.
  4. Calibration and maintenance of the deposition process control systems.
  5. Lubrication and maintenance of mechanical components such as pumps, valves, and motors.
  6. Regular inspection of electrical and electronic systems.

Learn More
pvd coating machine

FOXIN-GD Large Multi Arc-ion Sputtering Machine

FOXIN-TG multi-arc ion sputtering coating machine is a physical vapor deposition (PVD) equipment. For depositing thin films on substrates. It utilizes a process called ion sputtering. By bombarding a solid target with high-energy ions. Atoms or ions are eject from a solid target. FOXIN-TG multi-arc ion sputtering coating machine adopts multi-arc ion source. It consists of multiple cathodes arranged in a circle around the substrate. Each cathode is make from a target material. When high voltage is applie, an arc is create between the cathode and anode. The material is spray and ionized. The ionized material then deposits onto the substrate, forming a thin film. This machine is commonly used to deposit hard, wear-resistant coatings on cutting tools, molds and other metal parts. Such as titanium nitride (TiN) and chromium nitride (CrN). It is also used in decorative coatings on jewelry and other consumer products. Such as gold and silver. Here are some of the key features of the FOXIN-TG Multi-Arc Ion Sputtering Coating Machine: Multi-Arc Ion Source: The machine uses a multi-arc ion source. Thin films can be usually deposited onto substrates efficiently and precisely. High Vacuum Chamber: THis machine has a high vacuum chamber. Ensure a clean and contamination-free environment for the deposition process. PLC Control System: The machine is equippe with a Programmable Logic Control (PLC) system. The deposition process can be easily and precisely controlled. Including deposition time, film thickness and deposition rate. Multiple Deposition Targets: The machine can accommodate multiple deposition targets. Allows for the deposition of various materials onto the substrate. Rotating Substrate Holder: The substrate holder rotates during deposition. Ensure an even coating on all sides of the substrate. Functional PVD Coating Machine FAQ Q: What is a PVD coating machine? A:A functional PVD coater is a device that deposits thin films on substrates. PVD is a process that involves the vaporization of a solid material, which is then condensed onto a substrate to form a thin film. PVD coating machines can be use in a variety of applications. Includes cutting tools, decorative coatings and wear-resistant coatings. Q: What are the benefits of using a PVD coating machine? A: Some benefits of using a PVD coating machine include: Enhanced hardness and wear resistance: PVD coating can improve the hardness and wear resistance of the substrate. Making it ideal for use in high wear environments. Improved corrosion resistance: PVD coatings also increase the corrosion resistance of the substrate. Make it more durable and long-lasting. Precise control over film thickness: PVD coaters can precisely control the thickness of the deposited film. This is very important in achieving the desired properties and performance of the coated substrate. Wide range of materials: PVD coaters can deposit a wide variety of materials. Includes metals, ceramics and polymers, making it ideal for a variety of applications. Environmentally friendly: The PVD coating is environmentally friendly. No hazardous chemicals are use or toxic waste is generate. Q: What types of materials can be coat using a PVD coating machine? A:  PVD coaters can be use to coat a wide variety of materials. Includes metals, ceramics and polymers. Material choices vary. Will depend on the specific application and the desired properties of the coated substrate. Q: What applications are PVD coatings used for? A: PVD coatings are us in a wide range of applications, including: Cutting tools: PVD coatings significantly increase the wear resistance of cutting tools. Making it ideal for machining and metalworking industries. Decorative coatings:PVD coatings can be use to create decorative finishes on a variety of consumer products. Includes jewelry, watches and eyewear. Medical devices: PVD coatings can be use to improve the biocompatibility and durability of medical devices. Examples include implants and surgical instruments. Aerospace and automotive components: PVD coating increases corrosion resistance and durability of components. Therefore, it is widely used in the aerospace and automotive industries. Electronics: PVD coatings can be use to form conductive layers on electronic components. Q: How long does it take to apply a PVD coating? A: The time it takes to apply a PVD coating can vary based on a number of factors. Including the type of substrate to be coat and the thickness of the coating. and the specific PVD coating technology used. Typically, PVD coatings can be applie within hours. But for thicker coatings or larger substrates, the process may take longer. In addition, preparation time and post-coating treatments can also play a role.

Learn More

FOXIN-TG Multi Arc-ion Sputtering Machine

PVD (Physical Vapor Deposition) coating is a process in which a thin film of material is applie to a surface. The process utilizes both vacuum and physical vaporization processes. In the automotive industry. PVD coatings are commonly used for decorative and functional purposes. For example. PVD coatings are use to enhance the durability and corrosion resistance . It acts on various auto parts，such as wheels, trim and engine parts. These coatings are also used to provide decorative finishes on various components of the vehicle. Such as a chrome-like appearance. PVD coatings can be applie to a wide variety of materials. Such as stainless steel, aluminum and plastic. The process involves placing the part to be plate in a vacuum chamber. The target material is evaporate in the vacuum chamber and deposited on the surface of the part. The process creates a very thin, uniform coating that adheres tightly to the surface of the parts. Here are some of the key features of automotive PVD coatings: Enhanced Wear Resistance: PVD coatings can significantly improve the wear resistance of automotive components, such as engine parts, transmission components, and suspension parts. This helps to prolong the lifespan of these components and reduce maintenance costs. Improved Corrosion Resistance: PVD coatings can also improve the corrosion resistance of automotive components, making them more durable and resistant to rust and other forms of corrosion. Decorative Finishes: PVD coatings can be used to create a wide range of decorative finishes on automotive components, including chrome, black, and other metallic colors. This allows manufacturers to create custom finishes that meet the design requirements of specific automotive models. Environmentally Friendly: PVD coatings are environmentally friendly and do not use hazardous chemicals or produce toxic waste. This makes them an ideal choice for automotive manufacturers looking to reduce their environmental footprint. High Temperature Resistance: PVD coatings can withstand high temperatures, making them ideal for use on components that are exposed to heat, such as engine parts and exhaust systems. Automotive PVD Coating FAQ Q:  What is PVD coating? A: Physical Vapor Deposition technology is use in PVD coating process. Deposit thin films of material onto substrates. PVD coatings can enhance the surface properties of the substrate. Such as wear resistance, corrosion resistance and appearance. Q:What materials are used in automotive PVD coatings? A: TiN, CrN, and diamond-like carbon are frequently used in automotive PVD coatings (DLC). These materials have a variety of qualities. These include low friction, wear and corrosion resistance, and aesthetic finishes. Q:What automotive components can benefit from PVD coating? A: A variety of automotive parts can benefit from PVD coating. such as wheels, exterior trim, door handles, mirror housings and exhaust pipes. PVD coatings can increase the robustness and appearance of these parts. It also reduces maintenance costs. Q:How long does a PVD coating last? A: Factors that can affect the service life of PVD coatings include thickness and application . PVD coatings, on the other hand, are know for their toughness. They can last for many years if cared for properly. Q:Can PVD coatings be repaired or re-applied? A: PVD coatings may occasionally be reapplie or repaired. The kind and degree of the coating's damage will determine how this works out. A PVD coating can typically be repaire more easily than it can be reapplied. Q:Is PVD coating environmentally friendly? A:Yes, PVD coating is an environmentally friendly process. No harmful by-products or waste are create. It also does not contain toxic chemicals commonly used in other coating processes. Q:How does PVD coating compare to other coating processes? A:Compared to other coating processes such as electroplating or painting. PVD coatings offer several advantages. including improved durability, enhanced aesthetics and reduced environmental impact. PVD coatings are also more uniform and can provide better adhesion to the substrate.

Learn More

FOXIN-ZJ Large Diameter Multi Arc Ion Coating Machine Sheet

The machine utilizes a multi-arc ion source to generate a plasma that ionizes material. It is then directed towards the substrate. The ions adhere to the substrate, forming a thin film coating. The process is carry out under vacuum conditions. To ensure the high quality and uniformity of the coating.

FOXIN-ZJ machines are highly automated. Equipped with an advanced control system, the deposition process can be precisely controlled. It is also designed for high throughput. making it suitable for large-scale industrial applications.

Overall,The coating machine is a multifunctional and reliable thin film coating tool. It has a wide range of applications . Such as electronics, optics, aerospace and other industries.

Here are some of the key features of the FOXIN-ZJ Large Diameter Multi Arc Ion Coating Machine sheet:


  • Large-Diameter Substrate: The machine is design to accommodate large diameter substrates. Suitable for coating applications in various industries.
  • Multi-Arc Source: The machine uses a multi-arc ion source. Produces a high-density plasma that ionizes material. This plasma is then directed towards the substrate. This results in a highly uniform and dense coating.
  • Vacuum Chamber:The deposition process takes place in a vacuum chamber. Make sure the coating is free of contamination and defects.
  • Advanced Control Systems:The machine is equippe with an advanced control system. The deposition process can be precisely controlled. This ensures that the coating is highly uniform and of high quality.
  • High Throughput: The machine is designe for high throughput. Suitable for large-scale industrial applications.


FOXIN-ZJ Large Diameter Multi Arc Ion Coating Machine Sheet FAQ:


Q: What types of substrates can be coate with the FOXIN-ZJ machine?

A: FOXIN-ZJ machines can coat a variety of substrates. Including metal, plastic, glass, ceramics . It is design to accommodate large diameter substrates. Suitable for various industrial applications.

Q: What types of coatings can be produce with the FOXIN-ZJ machine?

A:  FOXIN-ZJ machines can produce a variety of coatings. Including metallic coatings, ceramic coatings and composite coatings. These coatings can be use in a variety of applications. Includes decorative, wear-resistant and anti-corrosion coatings.

Q: What are the advantages of using the FOXIN-ZJ machine for coating applications?

A:  This coater offers several advantages for coating applications, including:
  1. Versatility: The machine can coat a wide range of substrates, including metals, plastics, glass, ceramics, and more. It can also coat a variety of materials, including metals, alloys, and ceramics.
  2. Large Diameter Capacity: The machine is design to accommodate large diameter substrates. Suitable for a range of industrial applications.
  3. Uniformity: The multi-arc ion plating process used by the FOXIN-ZJ machine produces a highly uniform and dense coating. This is important for applications such as optics and electronics.
  4. Advanced Control Systems: The machine is equippe with an advanced control system. The deposition process can be precisely controlled. This ensures that the coating is highly uniform and of high quality.
  5. High Throughput: The machine is design for high throughput. Suitable for large-scale industrial applications.

Learn More
